光通訊/LDI應用

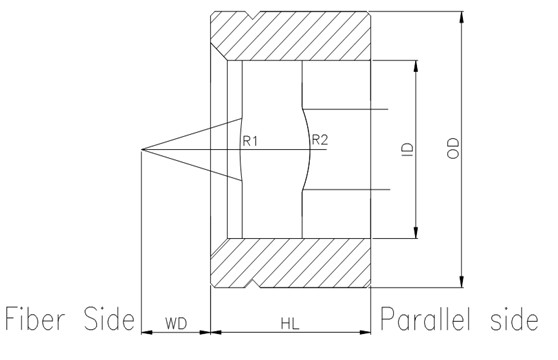

| Product | Wavelength | NA | EFL | OD | WD | ID | HL | Material |
|---|---|---|---|---|---|---|---|---|
| GD-07903 | 1310/1550nm | 0.26 | 1.58mm | 4mm | 0.82mm | 2mm | 1.9mm | P-SK57 |
| GD-80902 | 1310/1550nm | 0.26 | 1.58mm | 2.75mm | 0.82mm | 2mm | 1.9mm | P-SK57 |
| GD-81302 | 1310/1550nm | 0.26 | 1.58mm | 3.7mm | 0.82mm | 2mm | 1.38mm | P-SK57 |
| GD-83302 | 1260/1360nm | 0.3 | 1.8mm | 3mm | 1.02mm | 1.8mm | 1.6mm | D-ZK3 |
| D2002502 | 1310/1550nm | 0.26 | 1.58mm | 1.8mm | 0.92mm | 1.22mm | 1.4mm | D-ZK3 |
| D2205502 | 1260~1650nm | 0.2 | 1.85mm | 2.5mm | 1.68mm | 1.7mm | 1.4mm | K-VC80 |

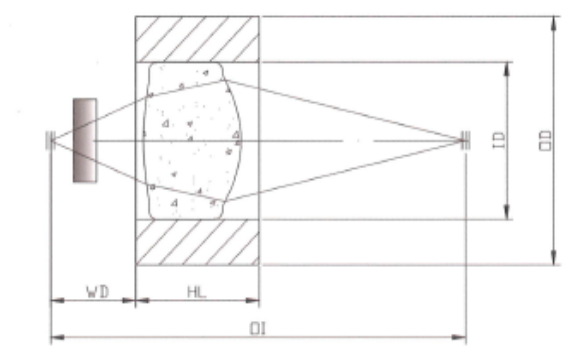

| Product | Wavelength | NA | EFL | OD | WD | ID | HL | OI | Material |
|---|---|---|---|---|---|---|---|---|---|
| D2003112 | 1260/1650nm | 0.4/0.1 | 1.37mm | 3.0mm | 1.1mm | 2.1mm | 1.6mm | 9.0mm | L-BAL35P |
| D2203212 | 900~1100nm | 0.4/0.1 | 1.304mm | 2.99mm | 1.03mm | 1.9mm | 1.6mm | 8.61mm | K-VC89 |
| D2301302 | 380~500nm | 0.4/0.1 | 1.31mm | 2.99mm | 1.03mm | 1.9mm | 1.6mm | 8.61mm | P-SK57 |
| D2205602 | 400~700nm | 0.65/0.2 | 1.8mm | 5.6mm | 1.245mm | 4.2mm | 2.915mm | 10.88mm | K-VC89 |

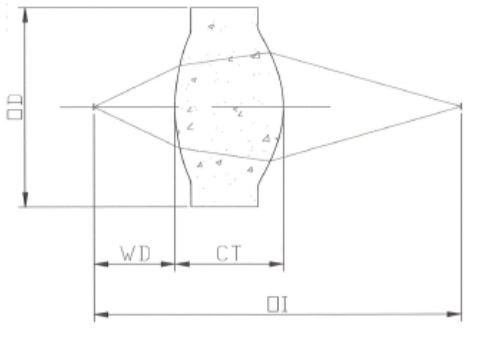

| Product | Wavelength | NA | EFL | OD | WD | CT | OI | Material |
|---|---|---|---|---|---|---|---|---|
| GN-07601 | 1310/1550nm | 0.4/0.1 | 1.36mm | 3.0mm | 1.06mm | 1.3mm | 9.0mm | K-VC80 |
| GN-08001 | 1310/1550nm | 0.4/0.2 | 1.0mm | 2.5mm | 1.065mm | 1.0mm | 4.7mm | K-VC80 |
| Product | Wavelength | NA | EFL | OD | WD | CT | OI | Material |
|---|---|---|---|---|---|---|---|---|

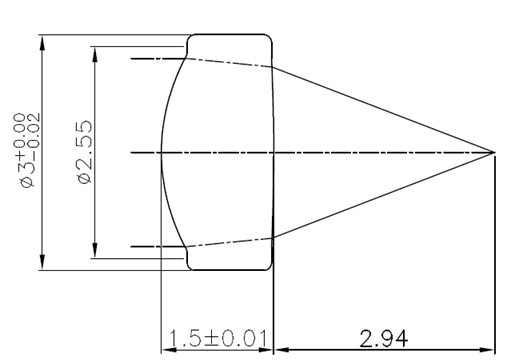

| GN-11401 | 620~640nm | 0.33 | 3.71mm | 3.0mm | 2.94mm | 1.5mm | 9.0mm | L-BAL35 |

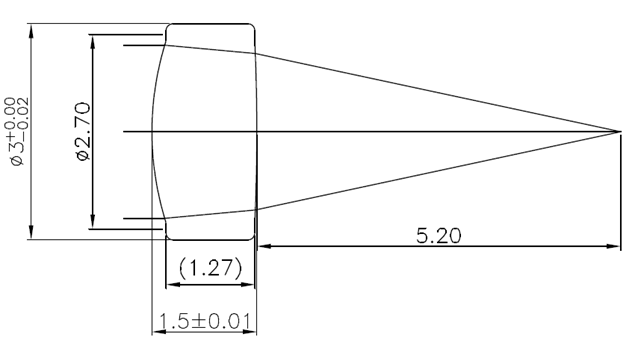

| GN-39901 | 620~640nm | 0.21 | 6.00mm | 3.0mm | 5.2mm | 1.5mm | 4.7mm | L-BAL35 |

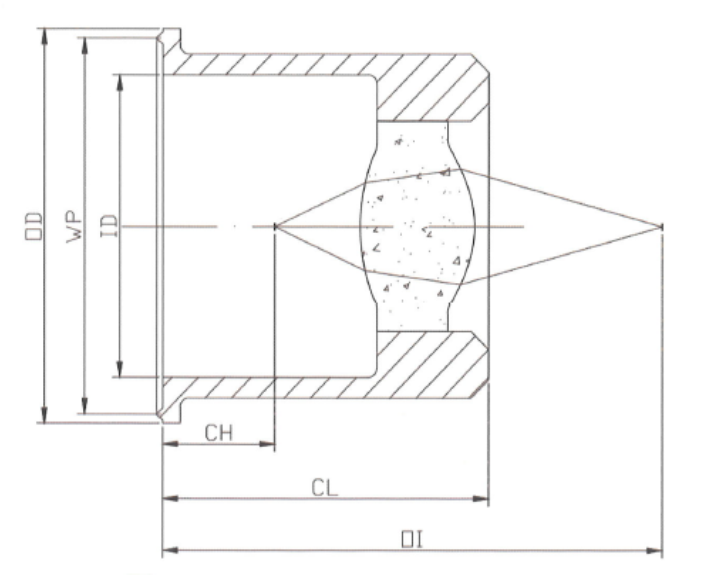

| Product | Wavelength | NA | EFL | OD | ID | WP | CH | CL | OI | M |
|---|---|---|---|---|---|---|---|---|---|---|
| TO56 | 1310/1550nm | 0.4/0.4 | 1.1mm | 4.3mm | 3.3mm | 4.1mm | 1.27mm | 3.91mm | 7.5mm | 2.8mm |
| 1577 TO56 | 1250~1650nm | 0.635/0.133 | 1.282mm | 5.45mm | 4.55mm | 5.25mm | 2.62mm | 5.245mm | 12.027mm | 4.76mm |
| TO38 | 1310nm | 0.5/0.142 | 0.506mm | 3.6mm | 2.8mm | 3.1mm | 1.29mm | 2.39mm | 4.39mm | 3.5mm |
