車載レンズ
Fixed Lens Rear View Fixed Lens Side View Fixed Lens RVM Fixed Lens AVM Fixed Lens 3D AVM Fixed Lens Rear+AVM Fixed Lens DMS Fixed Lens ADAS/Front View Fixed Lens CAR DVR Contact Us

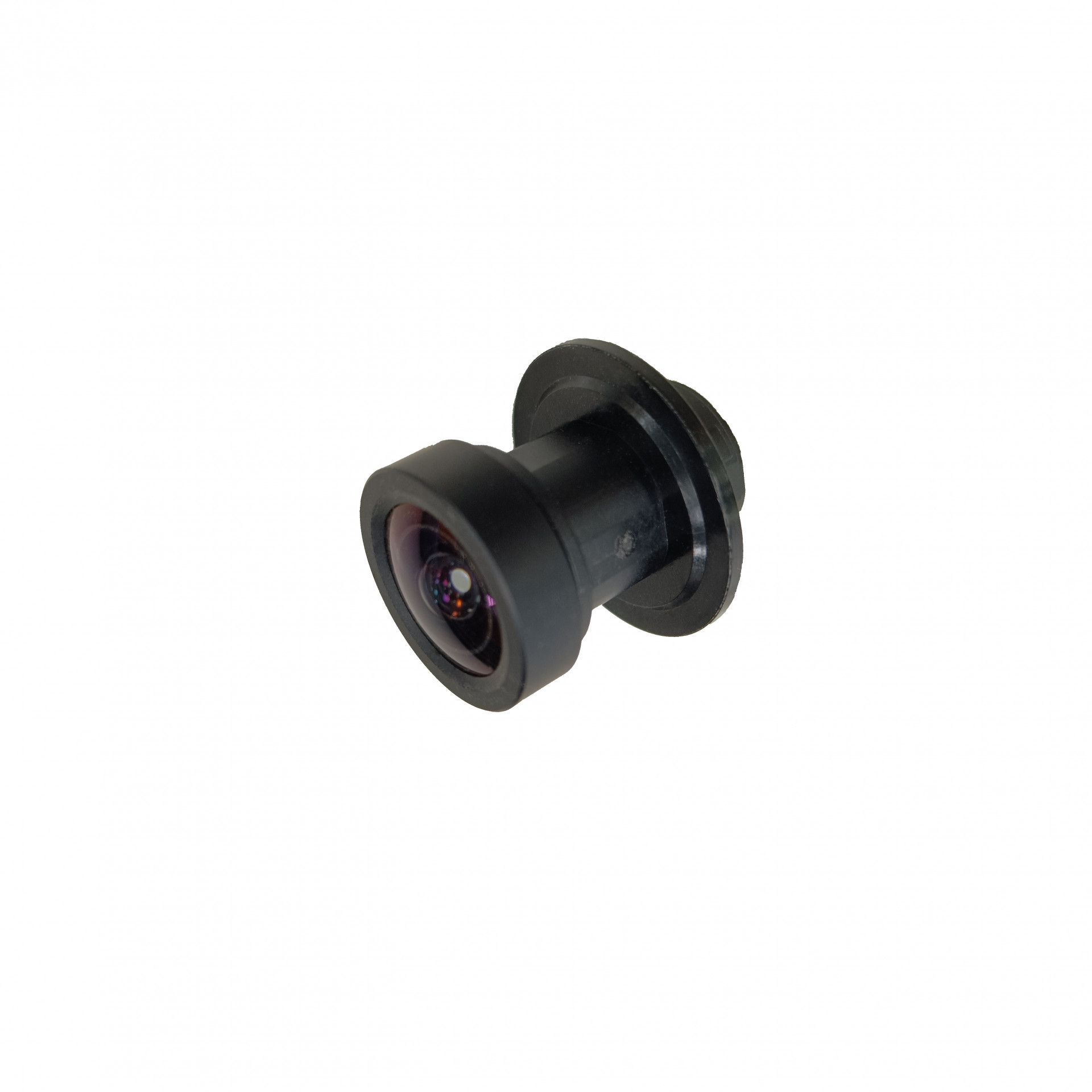

Fixed Lens Rear View
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-02 (IP67) | 1/4" | VGA | 1.36 | 2.4 | 130 | 13.8 | M12*P0.5 | Hybrid |
| CAR-07 (IP67) | 1/4" | VGA | 1.08 | 2.2 | 144 | 13.2 | M12*P0.5 | Hybrid |
| CAR-14 (IP6K9K) | 1/5" | VGA | 0.8 | 2 | 130 | 13.8 | M12*P0.5 | Hybrid |
Fixed Lens Side View
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-10 (IP67) | 1/4" | VGA | 2 | 2.2 | 81 | 14 | M12*P0.5 | Hybrid |
| CAR-58 (IP6K9K) | 1/3" | 4M | 2.3 | 2 | 124 | 22 | AA | All Glass |
Fixed Lens RVM
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-12 (IP67) | 1/4" | VGA | 1.7 | 2.5 | 128 | 14.26 | M12*P0.5 | Hybrid |
Fixed Lens AVM
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-11 (IP67) | 1/4" | VGA | 0.77 | 2.1 | 185 | 13.4 | M12*P0.5 | Hybrid |
Fixed Lens 3D AVM
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-20 (IP6K9K) | 1/4" | MEGA | 0.9 | 2 | 195 | 13.2 | M12*P0.5 | Hybrid |
Fixed Lens Rear+AVM
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-23 (IP6K9K) | 1/3.2" | MEGA | 1.27 | 2 | 184 | 14 | AA | Hybrid |
Fixed Lens DMS
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-31 | 1/3" | WVGA | 6 | 2.8 | 42 | 9.45 | AA | All Glass |
| CAR-33 | 1/4" | MEGA | 5.47 | 2.8 | 40 | 9.71 | M8*P0.5 | All Glass |
Fixed Lens ADAS/Front View
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-50 | 1/1.55" | 5.3M | 7.9 | 1.7 | 62.5 | 35 | M17*P0.5 | All Glass |
| CAR-55 | 1/1.55" | 5.3M | 4.49 | 1.6 | 120 | 35 | M16*P0.5 | All Glass |
| CAR-56 | 1/1.55" | 5.3M | 16.37 | 1.6 | 30 | 29.52 | M17*P0.5 | All Glass |
Fixed Lens CAR DVR
| NO. | Format | Resolution | Focal Length(mm) |
F# | HFOV | TTL (mm) | Thread Size | Construction |
|---|---|---|---|---|---|---|---|---|
| CAR-60 | 1/2.8" | 2M | 2.91 | 1.4 | 116 | 22 | AA | Hybrid |
| AS-134 | 1/3" | 4M | 2.3 | 2 | 114.6 | 22 | M12*P0.5 | All Glass |
| AS-302 | 1/3" | 4M | 3.2 | 2 | 103 | 22 | M12*P0.5 | All Glass |
